Attic insulation by climate zone: R30 in zone 1 to R60 in zones 4 to 8

For an attic with no insulation, ENERGY STAR's recommended R-value table, based on the 2021 International Energy Conservation Code (IECC), sets the target at R30 in climate zone 1, R49 in zones 2 and 3, and R60 in zones 4 through 8. If 3 to 4 inches already cover the attic floor, the same table says to add R25, R38 or R49. The first condition that stops the plan is vermiculite: ENERGY STAR's attic insulation project page says this pea-size, flaky gray mineral may contain asbestos, so it stays undisturbed until a lab has tested it. Measuring what is there is free; adding insulation is a bigger job for an owner.

Your climate zone sets the R-value target

R-value measures how well insulation resists heat traveling through it; higher is better. ENERGY STAR's R-value page lists the levels that are cost-effective for retrofitting existing wood-framed homes, with a zone map. DOE's Building America climate guidance page links a 2021 IECC tool with a zone look-up by county or zip code.

Scroll sideways to see the full table →

The estimated payoff is higher in the North than the South. EPA's ENERGY STAR savings methodology estimates that sealing air leaks and insulating attics, floors over crawl spaces and accessible basement rim joists saves 7% on heating and cooling costs in zone 1, 16% in zone 5 and 19% in zone 7, modeled on a typical 1,700-square-foot house built between 1970 and 1989, with air infiltration cut 25% and insulation raised to 2012 IECC levels, not the 2021 levels above.

Measure the depth and multiply by the R-value per inch

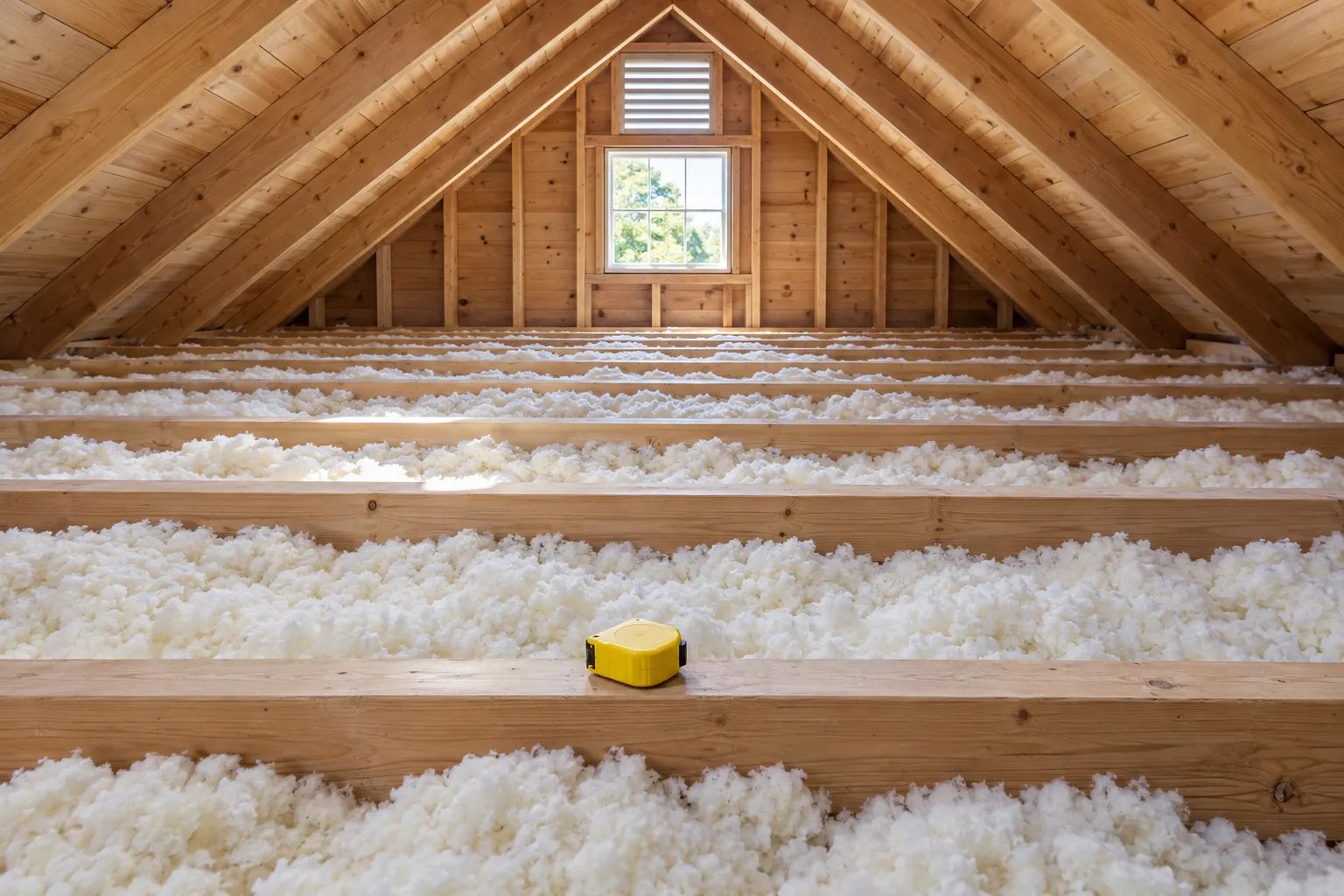

ENERGY STAR's DIY checks page gives two free checks. First, look across the attic: insulation level with or below the floor joists probably needs more, while insulation well above joists you cannot see is probably enough. Low spots count. The same page notes that the middle of an attic sometimes has enough while the eaves have very little. Second, read the R-value printed on existing batts, or measure the depth in inches and multiply by that page's figure for what you see:

• Loose yellow, pink or white fibers (fiberglass): 2.5 × depth
• Loose dense gray or near-white fibers (rock wool): 2.8 × depth
• Small gray flat pieces or fibers from newsprint (cellulose): 3.7 × depth
• Yellow, pink or white batts (fiberglass): 3.2 × depth

Light granules may be vermiculite: stop and read the safety section first. The DIY checks page says to walk on joists or truss chords, never on ceiling drywall, and to watch for roofing nails. It also prints its own table of ranges; this guide uses the R-value page's 2021 IECC figures above.

Example: 4 inches of loose fiberglass in zone 5

Example, with published figures and one assumption. The assumption is the attic itself: zone 5, with 4 inches of loose-fill fiberglass. ENERGY STAR's DIY checks page rates loose fiberglass at 2.5 × depth, so 2.5 × 4 = R10 today. ENERGY STAR's R-value table gives zones 4 through 8 with 3 to 4 inches in place one instruction: add R49. R10 + R49 = R59, one short of the R60 the same table sets for a bare attic there. Type matters. Had the 4 inches been cellulose, the reading would be 3.7 × 4 = R14.8, and R49 on top gives R63.8.

When you buy, DOE's Energy Saver guide (2022) says R-value depends on the insulation's type and thickness, and to read it on the packaging or the paper backing of rolled insulation. Ask a contractor to write the R-value added on the quote, not only the inches.

Stop first for vermiculite, old wiring and can lights

Vermiculite comes first. ENERGY STAR's attic insulation project page says not to disturb it unless an approved lab has tested it; your local health department names a lab. EPA's asbestos page adds that taking samples yourself is not recommended: hire a trained and accredited asbestos inspector, and find one through the state agency lists.

The same ENERGY STAR attic page says knob-and-tube wiring (pre-1930) can be a fire hazard when in contact with insulation; a licensed electrician assesses it before any insulation goes in. Keep all insulation at least 3 inches from recessed can lights unless they are rated IC (Insulated Ceiling), with a sheet metal or wire mesh barrier, and never cover soffit vents. Wet insulation means a roof leak for a roofer to fix first, and kitchen, bathroom or dryer vents that blow moist air into the attic go to an HVAC contractor to reroute outdoors before the work starts. With a gas furnace or water heater, read what to check on gas appliances before sealing.

Seal the attic floor, then lay batts or hire a blower

EPA recommends air sealing the attic before adding insulation, per ENERGY STAR's attic insulation project page, and DOE's 2022 guide says sealing uncontrolled air leaks can save 10%–20% on heating and cooling bills. Seal the leaks first.

The same ENERGY STAR attic page rates adding insulation a moderate-to-difficult DIY project of 1 to 3 days at $$$, against 1 to 2 days at $$$$ with a contractor, on a key where $ is under $100 and $$$$$ is over $2,000. Fiberglass rolls are easiest to lay yourself: perpendicular to the joists, unfaced when they go over existing insulation, working from the edges toward the attic opening. Loose fill needs a blowing machine, which some home improvement stores rent.

IRS Fact Sheet FS-2025-05 says the 25C credit, which the IRS 25C page shows covered insulation and air sealing materials, is not allowed for property placed in service after December 31, 2025. For help with the cost, check whether you qualify for free weatherization.
